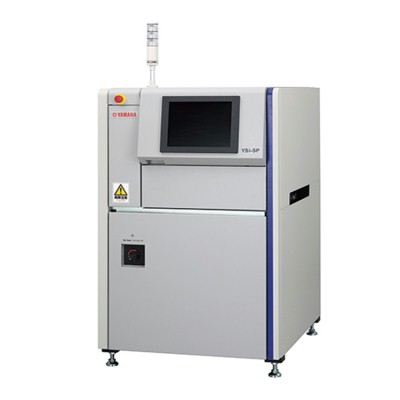

Name:YAMAHA YSi-SP 3D Solder Paste Inspection SPI
Model:YAMAHA YSi-SP
Brief:

1. “1-head solution” to perform various inspections with a single head

2. Achieves high-accuracy high-speed inspections using 3D+2D inspection, image resolution switch-over and more

3. A thorough and extensive machine-to-machine (M2M) solution

4. Statistical Process Control (SPC) for diverse statistical processing

5. Optional features to enable handling various products

Content

YAMAHA YSi-SP 3D Solder Paste Inspection SPI

YAMAHA SMT SPI

❙ Features

1. Cycle time on the world’s fastest level!
2. Supports fully-automatic stencil replacement
3. Delivers both high quality & super-accurate printing!
4. Supports extra-large boards & large-size stencils

❙ Specification



  YSi-SP
Applicable PCB L510×W460mm~L50×W50mm (single lane spec)
*No dual lane specification available.
Horizontal resolution (FOV size) 1)25µm / 12.5µm (approx. 50×50mm)
2)20µm / 10µm (approx. 40×40mm)
3)15µm / 7.5µm (approx. 30×30mm)
*All are standard selection type.
Height resolution 1µm
Inspection items Solder paste printing quality (volume, height, area and misalignment)
Power supply Single-phase AC 200V–230V ±10%
Air supply source Airless specification
External dimension L904×W1,080×H1,478 mm
Weight Approx. 550 kg
