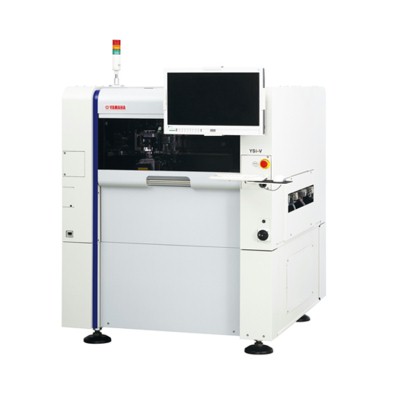

Name:YAMAHA SMT AOI Inspection Machine
Model:YAMAHA YSi-V SMT AOI
Brief:

1. Performs 2 Dimensional inspections, 3 Dimensional inspections, and 4-direction oblique image inspections all in one unit!

2. It has more than double the inspection capability of ordinary inspection systems.

3. 2D High-speed, high-resolution 2-dimensional inspections

4. 3D Height, and sloped surface 3-dimensional inspections (option)

5. 4D 4-way angular camera (option)

Content

YAMAHA SMT AOI Inspection Machine

YAMAHA SMT AOI

❙ Features

1. Performs 2 Dimensional inspections, 3 Dimensional inspections, and 4-direction oblique image inspections all in one unit!
2. It has more than double the inspection capability of ordinary inspection systems.
3. 2D High-speed, high-resolution 2-dimensional inspections
4. 3D Height, and sloped surface 3-dimensional inspections (option)
5. 4D 4-way angular camera (option)

❙ Specification

  YSi-V
Applicable PCB mm L610 x W560 (Max) to L50 x W50 (Min) (Single lane)
Note:L750mm long length PCBs available (option)
Number of pixels 12 megapixels 5 megapixels
Type 12M TypeHS2 12M TypeS 12M TypeDF 5M
Resolution 12µm 7µm 12µm 7µm 12µm 18µm
Target items Components status after mounting, components status and solder status after hardening
Power supply 3-Phase AC 200/208/220/230/240/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry state
External dimension L1,252mm x W1,498mm x H1,550mm (excluding projections)
Weight Approx. 1,300kg
