Name:YAMAHA YS12 Compact High-Speed Pick Place Machine
Model:YAMAHA YS12
Brief:

Yamaha pick and place machine applicable PCB: L510x~W460mm to L50x~W50mm, Applicable components: 0402(Metric base) to □32*mm components*1 *Correspondence since Jan., 2010, Placement Speed: 36,000CPH(0.1sec/CHIP Equivalent)

Content

Yamaha YS12 Compact High-Speed Pick Place Machine

YAMAHA YS12 Compact High-Speed Pick Place Machine

❙ Features Yamaha Pick and Place Machine

Yamaha pick and place machine applicable PCB: L510x~W460mm to L50x~W50mm, Applicable components: 0402(Metric base) to □32*mm components*1 *Correspondence since Jan., 2010, Placement Speed: 36,000CPH(0.1sec/CHIP Equivalent)

1. This compact platform design (front view breadth 1,254mm) assure flexible line arrangement in your site

2. Both new designed 10 inline multi-heads and new recognition system ensure 36,000CPH(0.1sec/CHIP Equivalent : optimum condition)
3. Maximum feeder capacity 120 lanes
4. Applicable to large size PCB, L510 x W460mm
5. Built-in tape cutter available as an option

❙ Specification of Yamaha Pick and Place Machine

  YS12 (Model : KHY-000)
Applicable PCB L510x~W460mm to L50x~W50mm
Through-put (Optimum) 36,000CPH(0.1sec/CHIP Equivalent)
Mounting accuracy (Yamaha's standard components) Absolute accuracy (μ+3σ) : +/-0.05mm/CHIP
Repeatability(3σ) : +/-0.03mm/CHIP
Applicable components 0402(Metric base) to □32*mm components*1 *Correspondence since Jan., 2010
Number of component types 120 types(Max, 8mm tape reel conversion)
Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source 0.45MPa or more, in clean, dry states
External dimension*2 L1,254~W1,440~H1,455mm(cover top)
L1,464(End of extension conveyor)xW2,018(End of guide for feeder carriage)xH1,455mm(cover top)
Weight Approx. 1,250kg

❙ Company Profile

Reflow oven

ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.

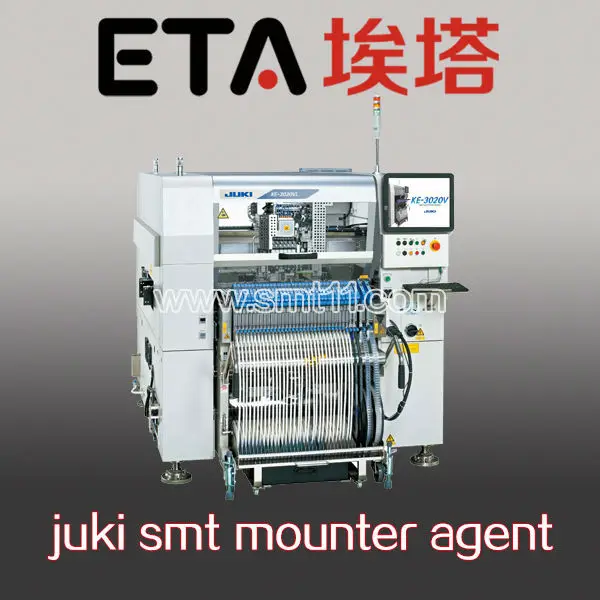

We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, Hanwha/Samsung, YAMAHA, PANASONIC brands.
Successful Experience:

Eta's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

❙ ETA SMT Machine Exhibition

Reflow oven

Reflow oven

❙ ETA SMT Machine Certificate

Reflow oven

❙ ETA Global Service

SMT Reflow oven

❙ Customers' Feedback

❙ FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
❙ Packaging & Shipping
Packaging

If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
