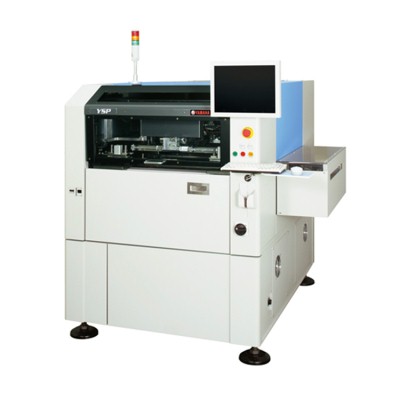

Name:YAMAHA YSP High Speed PCB Printing Machine
Model:YAMAHA YSP
Brief:

1. 11 sec/cycle* Line-tact.High-speed printing capability

2. 3σ:+/-0.005mm.Repeatability of positioning

3. PSC system (PSC : Print Stability Control)

4. 3S head (3S : Swing Single Squeegee)

5. Printing attack angle variable

6. L600mm pringint area applicable.YAMAHA Dual Lane System applicable

Content

YAMAHA YSP High Speed PCB Printing Machine

YAMAHA Paste Printer Machine

❙ Features

1. 11 sec/cycle* Line-tact.High-speed printing capability
2. 3σ:+/-0.005mm.Repeatability of positioning
3. PSC system (PSC : Print Stability Control)
4. 3S head (3S : Swing Single Squeegee)
5. Printing attack angle variable
6. L600mm pringint area applicable.YAMAHA Dual Lane System applicable

❙ Specification

  YSP(Model : KHT-000)
Applicable PCB L510xW460mm to L50xW50mm
Applicable for printing L600mm longer area transporting L610mm longer PCB
Printing head 3S head(named after Swing Single Squeegee)
For loading squeegee, possible to choose from metal or urethane squeegee
Printing accuracy Printing accuracy(3σ) +/-0.025mm
Accuracy for repeated alignment(3σ): +/-0.005mm
Cycle time 11.0 sec (for normal printing under our optimum condition)
Applicable stencil size L750x W750 mm L736x W736 mm L750x W650 mm L650x W550 mm L600x W550 mm*1 L550x W650 mm*1
Max PCB size L510xW460 mm L510x W460 mm L510x W350 mm L330x W250 mm L330x W250 mm L330x W250 mm
Power supply 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source 0.45MPa
External dimension L1,640mmxW1,640mmxH1,400mm (not include the projection)
Weigh Approx. 1,600kg
*1
These size stencils need addition of fixing adaptor and replacement of cleaning nozzle.

❙ Related keywords

YAMAHA Stencil Printer,YAMAHA PCB Printing Machine,YAMAHA Solder Paste Printer,YAMAHA SMT Stencil Printer,YAMAHA Solder Printer,YAMAHA Solder Paste Printer Machine,YAMAHA SMT Printer,YAMHA YSP10,YAMAHA YCP10,YAMAHA YSP20,YAMAHA YSP.

❙ Main keywords

Reflow Oven,Pick and Place Machine,SMT Machine,SMT Line,Wave Soldering Machine,Reflow Soldering Oven,SMT Equipment,SMT Pick and Place Machine,Chip Mounter,PCB Cutting Machine,SMT Reflow Oven,Pick & Place Machine,SMD Soldering Machine,SMT Aoi,SMT Conveyor, SMT Solutions, Chip Shooter, PCB Cleaning Machine, Reflow Machine, PCB Soldering Machine, SMT Assembly Line, SMT Stencil Printer, PCB Reflow Oven, Reflow Soldering Machine, SMT Oven, Pick n Place Machine, SMT Production Line, Solder Paste Printer Machine, SMT Screen Printer, LED Pick and Place Machine, SMT Line Machine, LED Production Line, SMT Nozzle Cleaning Machine, LED TV Production Line.
