The 1 head solution has reached an ultimate stage. An all-around surface mounter delivering both overwhelming productivity and flexibility!
- Fusion with Σ technology achieves overwhelming productivity
- Broad-ranging production capability thanks to the 1 head solution
- Standard features that maintain component mounting quality at a peak level!
- Ensures high-efficiency production with a full range of functions!
-

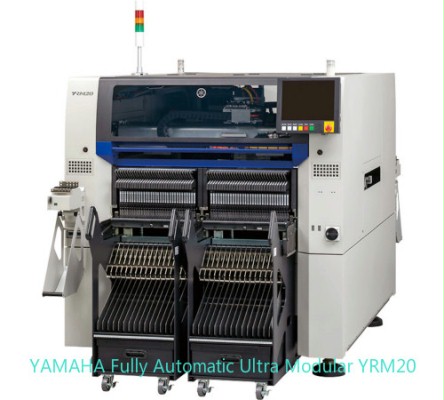

Model YRM20 Super high-speed rotary RM head High-speed general-purpose
in-line HM headOdd-shaped components
in-line FM (flexible-multi) headNozzles (per 1 head unit) 18 10 5 Applicable components 0201mm to W12 x L12mm,
Height 6.5mm or less0201mm to W55 x L100mm,
Height 15mm or less03015mm to W55 x L100mm,
Height 30mm or lessMounting capability
(high-production mode)115,000CPH
(under optimum conditions)98,000CPH
(under optimum conditions)35,000CPH
(under optimum conditions)Mounting accuracy
(high-accuracy mode)±0.025mm Cpk≧1.0 (under optimum conditions) ±0.035mm Cpk≧1.0
(under optimum conditions)Number of component types Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder)
Fixed plate : Max. 128 types (conversion for 8mm tape feeder)
Trays: 60 types (maximum when equipped with eATS30 x 2)PCB dimensions Dual-stage specifications
1-PCB conveyance : L50 x W50mm to L810 x W510mm
2-PCB conveyance : L50 x W50mm to L810 x W510mmPower supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz Air supply source 0.45MPa or more, in clean, dry state External dimension
(excluding projections)L1,374 x W1,948 x H1,445mm Weight Approx. 2,250kg (Main unit only) - Specifications and appearance are subject to change without prior notice.
