Name:Yamaha Chip Mounter -YV100XGP

Model:Yamaha Chip Mounter -YV100XGP

Brief:

"YAMAHA YV100X Pick and Place Machine,YAMAHA SMT Chip Mounter YV100X ,YAMAHA SMT Placement Machine YV100X ,YAMAHA SMT MACHINE YV100X"

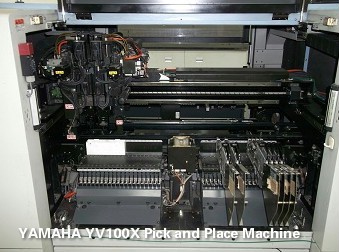

Yamaha Chip Mounter -YV100XGP

Warranty:6 months

Usage:SMT machine

Quality:100% Tested

Brand Name:Yamaha

Type:SMT machine

Model: YV100XGP

Applicable PCB: L460 x W440mm to L50 x W50mm

Through-put (Optimum): 20,000CPH (0.18sec/CHIP Equivalent)

Mounting accuracy Absolute accuracy (j.1 +30 ) : +1-0.05mm/CHIP, +/-0.05mm/QFP, Repeatability (3 0) : +/-0.03mm/CHIP, +/-0.03mm/QFP

Applicable components 0603 (Metric base) to 031 mm components, SOP/SOJ, QFP, connector, PLCC <Note1>

Height of components which can be mounted: 6.5mm or less

Numberof componenttypes 90 types (Max, 8mm tape reel conversion) <Note2>

Power supply 3-Phase AC 200/208/220/240/380/400/416V +1-10% 50/60Hz

Air supply source 0.55MPa or more, in clean, dry states

External dimension<Note3> L1,650 x W1 ,408 x H1,425mm (cover top)

Weight Approx. 1,580kg
