² Troubleshooting Guide

For safety, be sure to read the manual before using this machine and follow instructions in this manual carefully.

Users who have not received training on this machine should not use it.

Caution [ Before operating this machine ]

Ø Before operating this machine, please read this manual and understand its contents.

Please keep this manual near the machine at all times so that it can be referred to as

necessary.

Ø Users who have not received training on this machine should not use it.

Ø Hanwha Techwin provides a training program for operating this machine. For details, please contact our SMT Global Training Center and local agent designated by Hanwha Techwin Co., Ltd.

² About Safety

In order to use this machine properly and safely, observe the rules and instructions regarding safety mentioned in this manual.

Ø Basic items to be observed while using this machine are as follows:

Ø In order to use the machine properly and safely, users must receive appropriate training.

Ø When performing machine inspection, part replacement, repair or internal setup, turn off the power switch.

Ø Repairs and maintenance of this machine not mentioned in this manual should only be performed by a service engineer authorized by Hanwha Techwin Co., Ltd. No repairs or maintenance should be done by a customer at their discretion. Otherwise, unexpected accidents may occur.

Ø First, teach the machine after checking for safety around the machine and take measures against any errors that occurred to the machine while not in its 'READY' state.

Ø Do not use the machine where inflammable gas is present or contamination is severe.

Ø Cautions to be exercised for safety are described in this manual as follows:

² Danger

Indicates an imminently hazardous situation which, if remarks following this symbol are not observed, will result in death or serious injury. Therefore, instructions must be followed without fail.

² Warning

Indicates a potentially hazardous situation which, if remarks following this symbol are not observed, will result in death or serious injury. Therefore, instructions must be followed without fail.

² Caution

If remarks following this symbol are not observed, damage to the machine, embedded program, data, etc. may occur, or accidents involving personal injury may occur. Therefore, instructions must be followed without fail.

² Safety Precaution

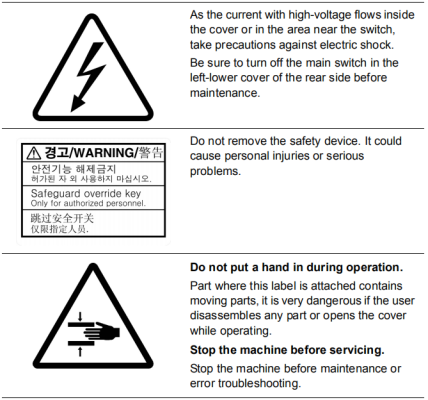

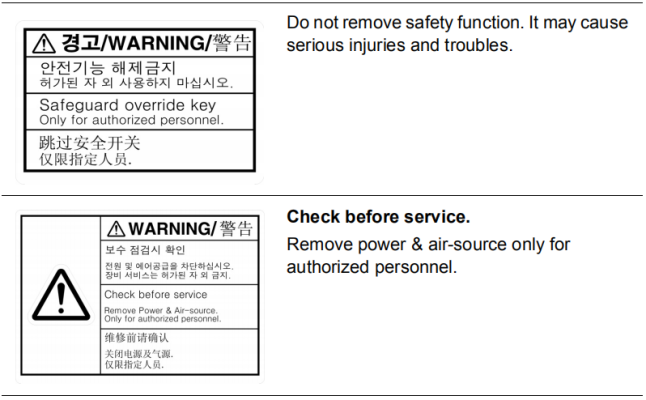

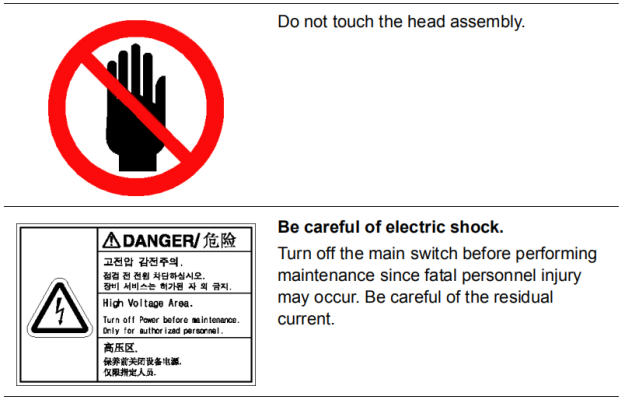

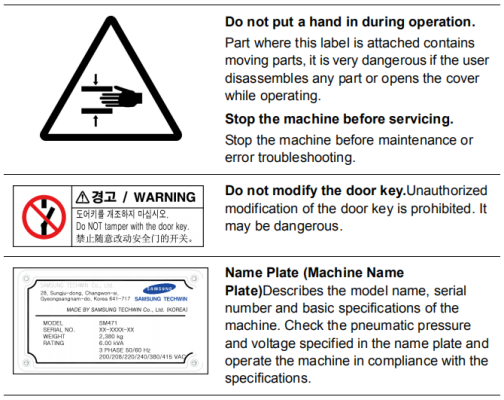

Following labels described in each section are attached on specific position of this machine. Follow the instructions on each label for operating this machine safely. If a label has come off or has damaged, put a new one on a specific position referring to the following figures. For ordering a new label or offering any comment, questions, please contact to the business department or the local agent designated by Hanwha Techwin Co., Ltd.

Ø Front View of the Machine

The following labels are attached on the front part of this machine.

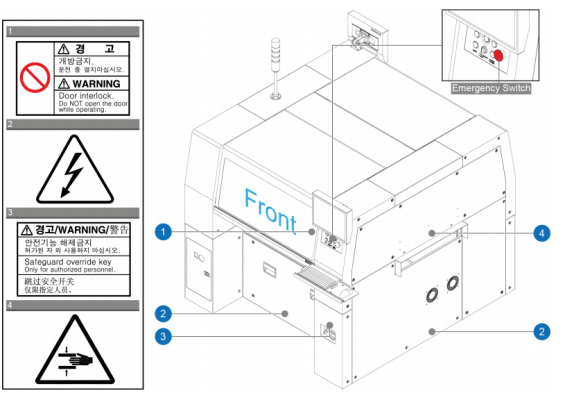

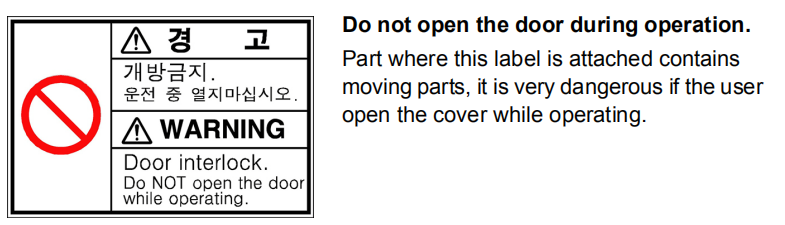

Figure1.1 Safety labels attached on the front part of the machine

Ø Rear View of the Machine

The following labels are attached on the rear part of this machine.

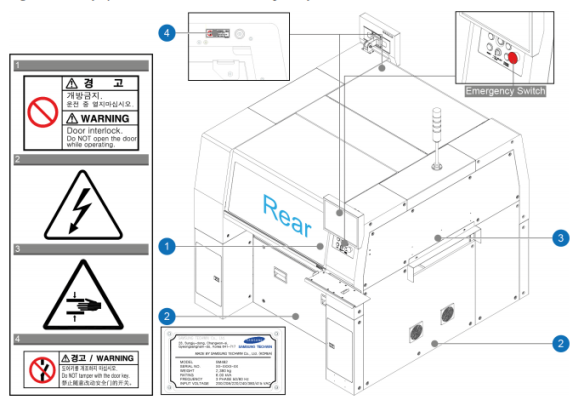

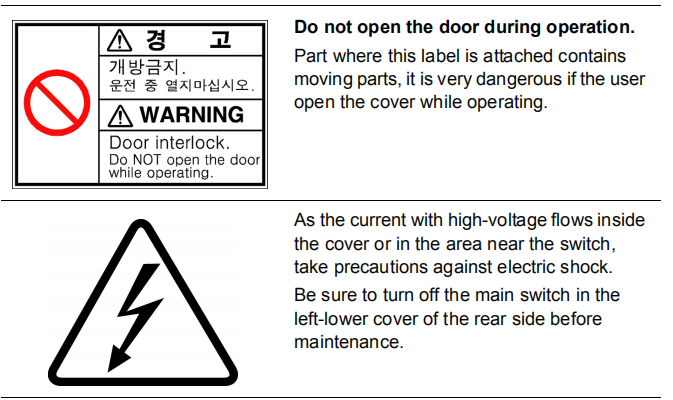

Figure1.2 Safety labels attached on the rear part of the machine

Ø Internal Part of the Machine.

The following labels are attached on the rear part of this machine.

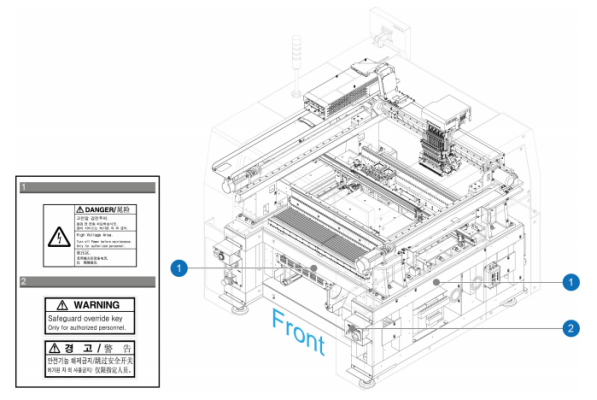

Figure1.3 Safety labels attached to the inside of the machine at the front

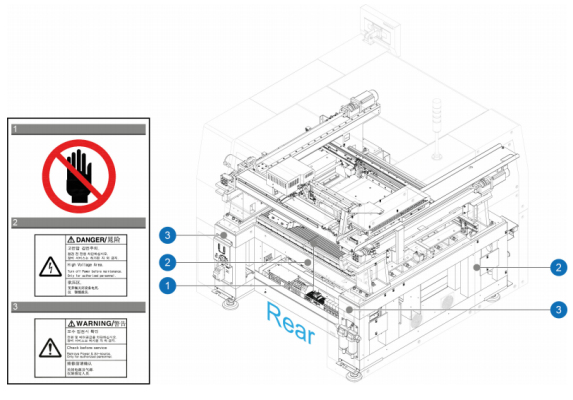

Figure1.4 Safety labels attached on the inside of the machine at the rear
