Name:YAMAHA YST15 Intelligent SMD Storage System

Model:YAMAHA YST15

Brief:

YAMAHA YST15 intelligent SMD storage system

1. Achieved automation of storage and refill management for surface mounter components-can now monitor a max. of 1,500 reels and load and unload a max. of 33 reels in one batch.

2. Vastly boosts efficiency by cutting down on the time and trouble for component supply

3. Smart component and refill functions

4. Compound effect from linking different functions helps cut work-task losses

Content

YAMAHA YST15 Intelligent SMD Storage System

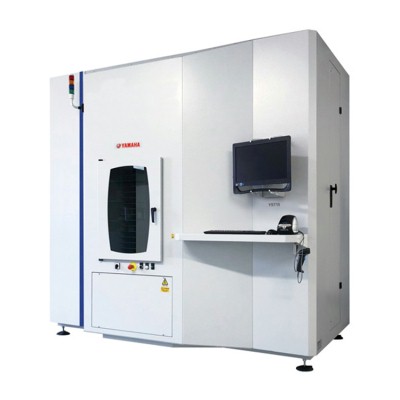

YAMAHA SMD Storage System

❙ Features

1. Achieved automation of storage and refill management for surface mounter components-can now monitor a max. of 1,500 reels and load and unload a max. of 33 reels in one batch.

2. Vastly boosts efficiency by cutting down on the time and trouble for component supply

3. Smart component and refill functions

4. Compound effect from linking different functions helps cut work-task losses

❙ Specification

Model		YST15			YST15 wide type
Type		Small	Standard	Mix	Wide 1	Wide 2
Storage capacity	No options available	7 inches : 1500 pieces	7 inches : 900 pieces 13 to 15 inches : 200 pieces Total 1100 pieces	7 inches : 635 pieces 13 to 15 inches : 265 pieces Total 900 pieces	13 to 15 inches : 525 pieces (tape width 12 to 16mm)	13 to 15 inches : 400 pieces (tape width 24 to 32mm)
Storage capacity	Extension option	7 inches : 500 pieces	7 inches : 500 pieces	7 inches : 500 pieces or 13 to 15 inches : 165 pieces	13 to 15 inches : 165 pieces	13 to 15 inches : 121 pieces
Max. number of reels entered/retrieved from stock in one batch		7 inches : 33 pieces	7 inches : 16 pieces, 13 to 15 inches : 8 pieces Total 24 pieces	7 inches : 16 pieces, 13 to 15 inches : 8 pieces Total 24 pieces	13 to 15 inches : 8 pieces	13 to 15 inches : 8 pieces
Maximum conveyable reel weight		1.5kg
Maximum tape width		24mm	32mm (44mm and more per factory options)
Humidity management function		Standard equipment
Maximum manageable units		Centralized management linking a maximum 99 units Note : Use of separate PC recommended when linking 4 or more units
Main accessories		Touch panel, 2D label printer, 2D scanner, Mounter linked software
Power supply		Single-phase AC 200 to AC 230V +/-5%
External dimension (excluding projections)	No options available	L2,590 x W1,350 x H2,470			L2,590 x W1,510 x H2,470
External dimension (excluding projections)	With extension option	L2,590 x W1,350 x H3,220			L2,590 x W1,510 x H3,220
Weight		1,100kg (1,500kg if extension option is selected)
